Detailed Structural Features

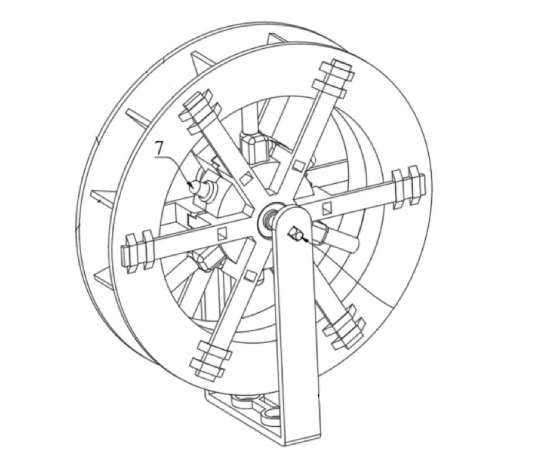

1) Water Wheel Structure ：The water wheel consists of a first frame and a second frame that are combined left and right. An installation position is provided in the middle for fixing the winding component. The water flow pushing parts are evenly arranged along the circular edge of the frames, and when the two frames are combined, the water flow pushing parts are arranged at intervals, resulting in a uniform and compact structure. The frames are also equipped with groove positions for positioning the light-emitting lamps, facilitating their fixation.
2) Water Flow Pushing Parts ：Shaped like plates, the water flow pushing parts form water injection areas between adjacent parts. When water flows into the water injection areas, it pushes the water wheel to rotate.
3) Winding Component ： Comprising a coil and a circuit board, the winding component is electrically connected to the light-emitting lamps via the circuit board. The winding component is encapsulated with a sealing glue layer to provide waterproofing and protect internal components.
4) Bracket and Central Shaft ： The bottom of the bracket is provided with connection holes, through which the device can be fixed with screws. The end of the central shaft is square-shaped, matching the square holes on the bracket to ensure the central shaft remains fixed and does not rotate.
5) Material Selection ： The water wheel is made of light-transmitting materials such as PP, PVC, PC, or PS. When the light from the light-emitting lamps shines on the water wheel, it produces a light-transmitting effect, enhancing the ornamental value.
Working Principle
When water flows against the water-pushing components on the edge of the water wheel, the water wheel starts to rotate. As the water wheel spins, the relative motion occurs between the winding components and magnetic parts in the generator core installed at the connection point of the water wheel and the central shaft. The coils cut the magnetic field lines in the magnetic field, generating induced current. This current is transmitted to the light-emitting lamp through the circuit board, causing the lamp to light up and emit a soft and beautiful glow. Meanwhile, since the water wheel is made of light-transmitting material, light can pass through it, creating a unique visual effect and further enhancing the ornamental value of the device.
Advantages
● Self-generating Design : The rotation of the water wheel drives the generator core, eliminating the need for an external power source and making it more flexible and convenient to use.
● Compact and Ingenious Structure : All components are closely coordinated with a reasonable overall design, ensuring the device's stability and durability.
● Excellent Waterproof Performance : The sealing glue layer of the winding components effectively prevents water intrusion, extending the device's service life.
● Outstanding Decorative Effect : The light-transmitting water wheel combined with the light-emitting lamp creates a unique visual effect, suitable for various decorative scenarios.
● Easy Installation and Fixation : The connection holes at the bottom of the bracket allow the device to be easily fixed in different positions, enhancing usage flexibility.
