The Structure Of The New Type Of Power Generation Slide Plate

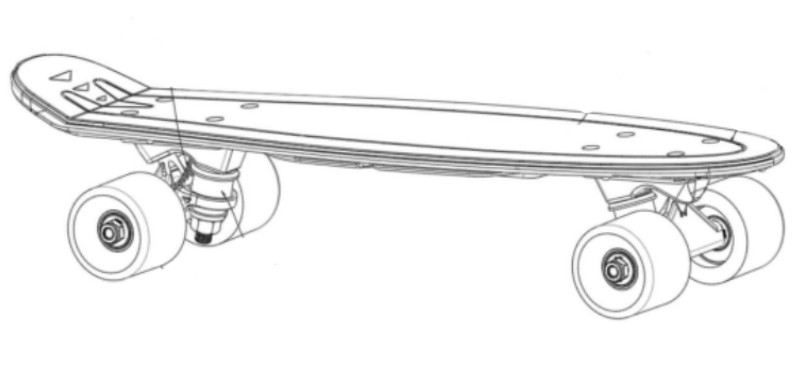

● The new type of power generation skateboard is mainly composed of the board body, bracket, wheels, power generation components and light effect components. All parts work closely together to achieve a complete functional chain from kinetic energy to electrical energy and then to the presentation of light effects. The board body serves as a platform for the user to stand on. The bracket connects the board body with the wheels, providing support and stability for the skateboard. The paired wheels ensure the flexible movement of the skateboard.
● The power generation component is located inside the wheels and is the key technology. The winding frame winds the coil group, with a metal cutting disc on the outside. Both are connected to the circuit board, and the circuit board is also connected to the output wires and LED lights. When the wheel rotates, the magnetic ring and the coil group cut the magnetic field lines to generate current, achieving the conversion of kinetic energy to electrical energy.
● The light effect components are on the board body and consist of LED beads and light guide parts. The first and second light guide strips of the light guide component are respectively wrapped around the edge and the inner side of the plate body. After the LED light emits light, the light conduction causes the light guide strip to glow, creating a two-circle luminous effect. Moreover, the lights at both ends of the light guide strip enhance the bright effect.
● The output wires are connected to the power generation and light effect components. There are springs in the wire grooves of the bracket to fix the wires, and the wire outlet holes at the top are connected to the interior of the board body. The wheel is composed of a hub, an installation housing and a tire. The magnetic ring is installed inside the installation housing. The installation housing and the hub are fixed by the fit of the clips, slots and screws. The wire transition piece on the wheel limits the wire to ensure the stability of the structure.
The Unique Functions And Advantages Of Skateboards

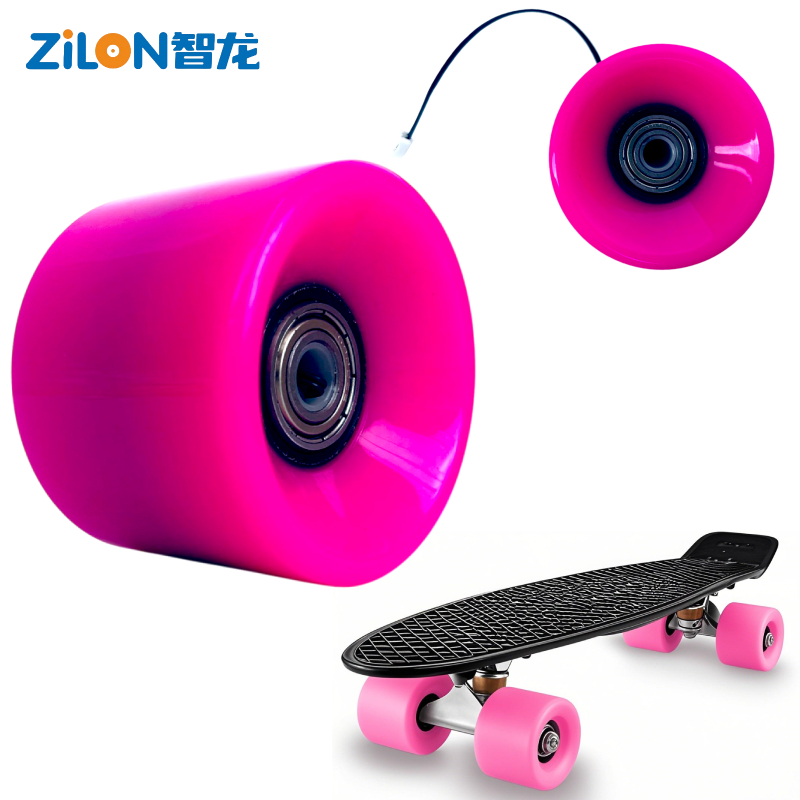

● The self-generation function enables energy self-sufficiency: When the skateboard wheels rotate, the power generation component generates current, which not only supplies power to the light effect component but also lights up the leds on the circuit board. This self generator wheel function enables the skateboard to operate without an external power source, achieving energy self-sufficiency, which is both environmentally friendly and convenient.

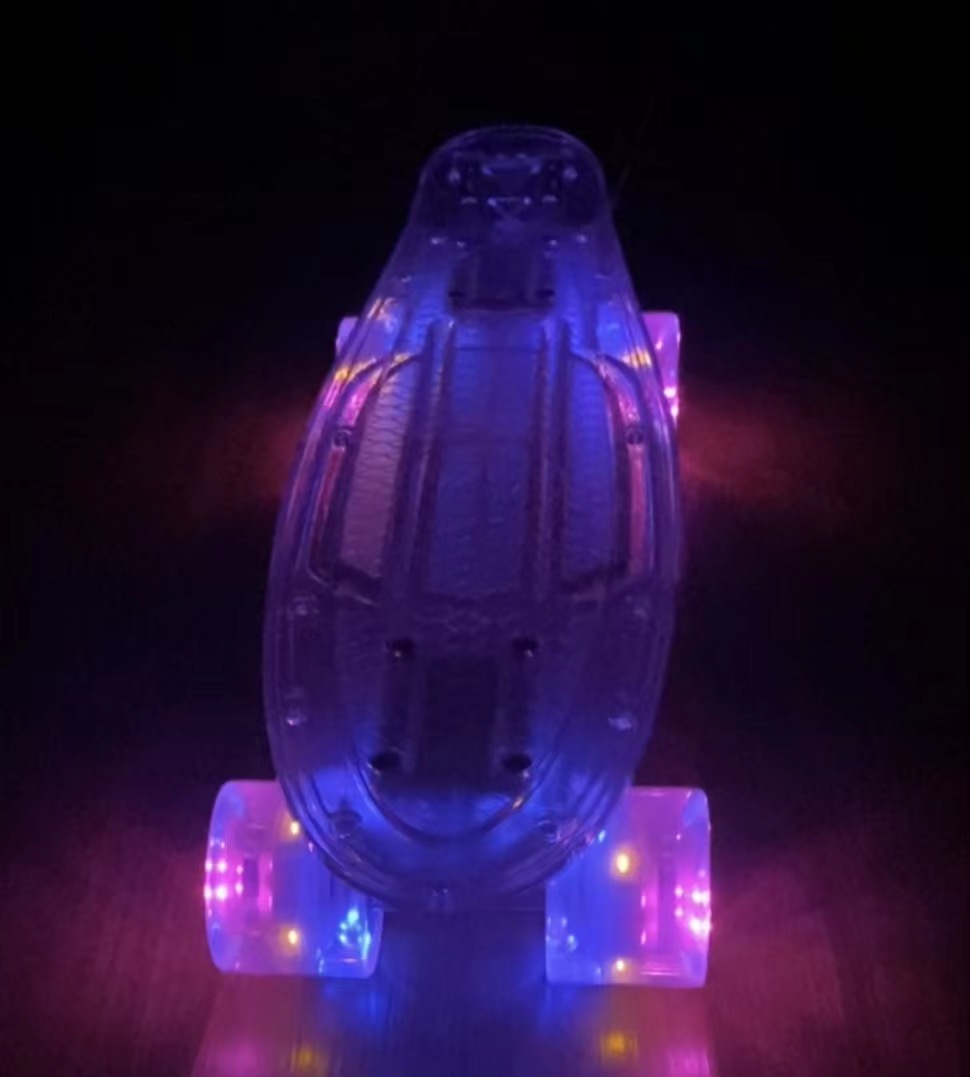

● Rich lighting effects enhance entertainment experience: The design of the lighting components enables the skateboard to present dazzling lighting effects during the process. The inner and outer light guide strips emit light, combined with the illuminated lights at the front and rear ends, as well as the projectors that can be installed on the body. The projectors can project patterns onto the ground, greatly enhancing the fun and entertainment of the skateboard and providing users with a unique sliding experience.
This new type of power-generating skateboard, with its innovative design and unique functions, has broad application prospects in the skateboard market. For skateboard enthusiasts, it meets the demand for personalized and interesting skateboards. In business activities, it can be used as a special performance prop or a display tool to attract customers. In leisure and entertainment venues, such as theme parks and shopping malls, they can also become popular experience projects.
