The Exquisite Design Of The Light Effect box
● Materials And Structure

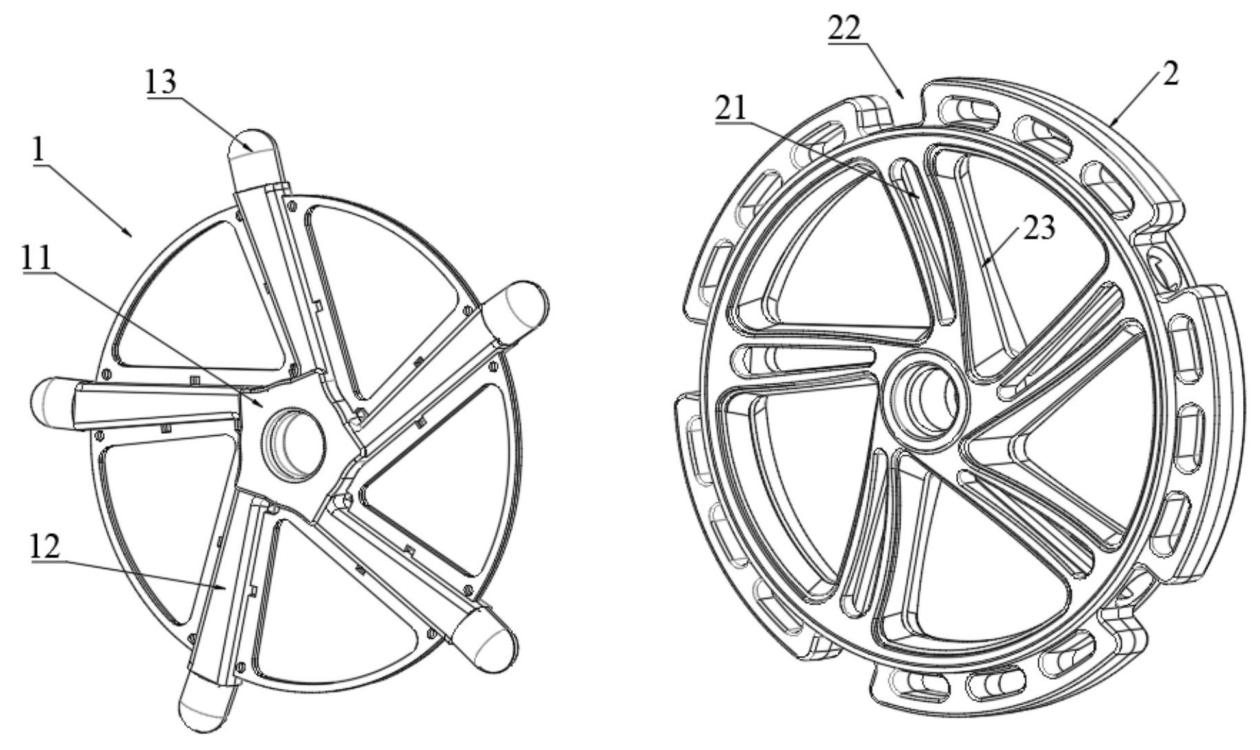

The core of the light effect box is the light effect box itself. It is made of translucent materials, such as transparent or semi-transparent PC, PP, PS, etc. Some of them also have reflective effects, which can serve as a safety warning when the wheels are not glowing. In the middle of the light effect box body, there is a storage cavity for installing the light-emitting lamp components. Around the storage cavity, several light-emitting channels are distributed in a radial pattern. This divergent design provides a foundation for a unique visual effect.
● Luminous Efficacy End And Luminous Efficacy Point
The luminous effect end at the end of the light-emitting channel is uniquely designed. It is shaped like a condenser lens of an LED lamp head and can be designed in various shapes such as circular, arc-shaped, square, and rhombus, which can gather light and enhance the luminous effect. On the inner walls of the light-emitting channels and the light effect ends, there are numerous light effect points of various shapes and sizes. When light shines on them, it causes scattering, allowing the light to be evenly distributed on the main body of the light effect box and creating a charming light effect.
● Printed Patterns And Split Structures
The surface of the light-emitting channel can be printed with light effects, featuring various exquisite patterns. When illuminated, the patterns appear, enriching the visual effect. The main body of the light effect lamp box adopts a detachable design and is composed of the first box body plate and the second box body plate. The assembly column of the first box body plate fits with the assembly hole of the second box body plate to ensure a stable combination of the two. In special cases, plastic ultrasonic fusion technology can also be used for reinforcement. This split structure is convenient for installing the light-emitting lamp components and can also protect the components during injection molding, thereby enhancing durability.
The Principle Of Power Generation And Light Emission

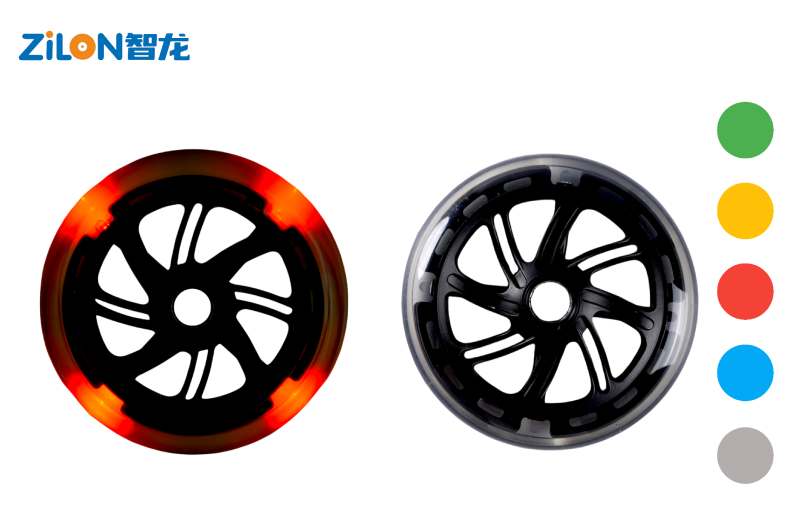

Based on this light effect lamp box, a brand-new light-emitting wheel has also been born. This new type of light-emitting wheel contains a hub, and the light effect lamp box is installed inside the hub. The light-emitting lamp assembly in the storage cavity consists of a power generation mechanism and a light-emitting lamp (LED lamp). The power generation mechanism employs existing technologies, including circuit boards, magnetic coils and induction coils. When the wheel rotates, the relative motion between the induction coil and the magnetic coil cuts the magnetic field lines, generating current and lighting up the light-emitting lamp.
The Design Of The Wheel Hub
The side of the wheel hub is provided with grooves and gaps. After the light effect lamp box is assembled, the light emission channel is in the groove and the edge of the light effect lamp box is in the gap. Their presentation states are diverse. One can be convex and the other concave, or both can be concave or convex. This design allows light to pass through the light-emitting channel, the light-emitting edge (when the edge of the light effect box protrudes), or the gap (when the edge of the light effect box is concave), creating a brilliant visual effect. The concave position at the circumference of the wheel hub allows the luminous end to protrude, which not only increases the light-emitting area but also protects the luminous end from being squeezed. During production, the combination method of the light effect lamp box and the wheel hub is flexible. It can be integrally injection molded or separately pressed into boxes.
